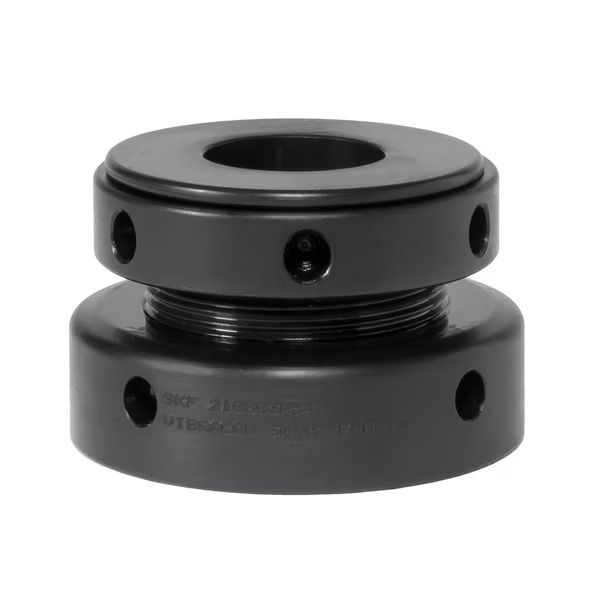

SKF Vibracon SM 12 Surface Treated Adjustable Chock - E-CSTR Series
A solution designed for demanding industrial environments. These self-leveling chocks feature a nitrocarburized surface treatment for enhanced corrosion resistance, accommodate angular differences up to 4°, and eliminate soft foot without machining the base.
Key Specifications:
• Model: SM 12 E-CSTR
• Bolt Size Range: M12-M16
• Adjustment Range: 1.25"-1.8" (32-40 mm)
• Engineering Height: 1.18"-1.37"
• Weight: 1.2566 lbs
• Material: Surface Treated Carbon Steel
• UPC: 7316581282494
Ideal For:
• Factory floor applications in humid environments
• Coastal or marine industrial installations
• Indoor environments with salt exposure or moisture
• Equipment mounting where corrosion protection is required
• Demanding industrial environments
Features:
• Nitrocarburized surface treatment for superior corrosion resistance
• Enhanced durability in humid and salty environments
• Easy adjustment without seizing
• Reliable performance in demanding environments
• Excellent load capacity for their size
