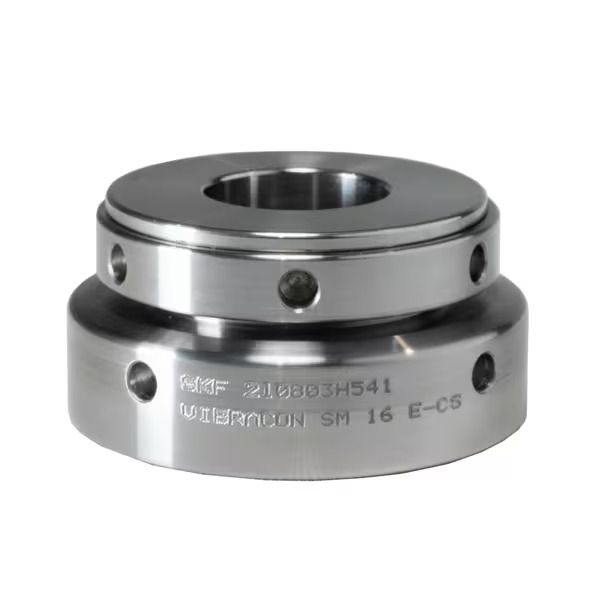

SKF Vibracon SM 16 Carbon Steel Adjustable Chock - E-CS Series
A cost-effective solution for standard industrial applications. These self-leveling chocks accommodate angular differences up to 4° and eliminate soft foot without machining the base.
Key Specifications:
• Model: SM 16 E-CS
• Bolt Size Range: M16-M20
• Adjustment Range: 0.8"-1.24" (31-46 mm)
• Engineering Height: 1.33"-1.89"
• Weight: 2.2531 lbs
• Material: Carbon Steel
• UPC: 7316581282517
Ideal For:
• Factory floor applications
• Indoor industrial environments
• Cost-conscious projects where corrosion protection is not a primary concern
• Standard equipment mounting applications
Features:
• Cost-effective pricing
• Easy adjustment without seizing
• Reliable performance in standard environments
• Excellent load capacity for their size
• Compatible with most machinery mounting applications
For marine or corrosive environments, consider our Surface Treated (E-CSTR) or Stainless Steel (E-SS) options.
