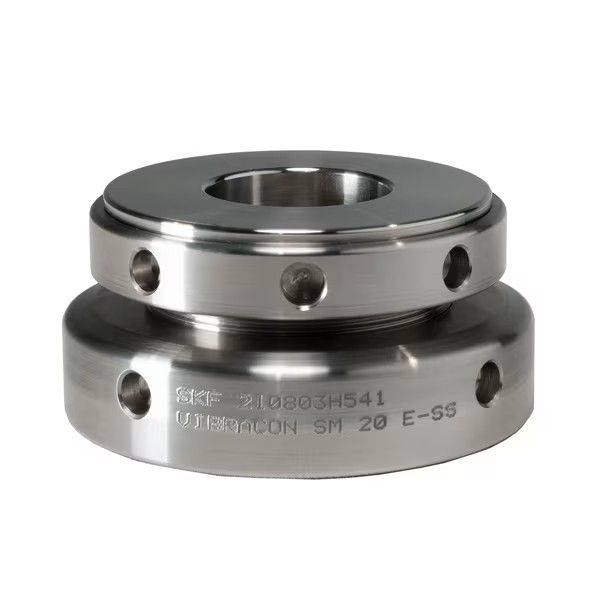

SM 20 E-SS Stainless Steel Chock
Product Details
UPC:
7316581282593
Brand:
SKF
Product Type:
Alignment Tool
Stainless steel chocks (E-SS) are used in the most demanding environments where carbon steel surface-treated chocks will not suffice. Mating surfaces are treated with additives to prevent parts from seizing when adjusted. They are suitable but not limited to be used in industries such as oil & gas or offshore.
Features & Benefits
- A high load capacity
- A broad adjustment range
- An optimized load path through the product
- An optimized bolt/Vibracon combination
- Reduced chock height across the entire range
| Dimensions | |
|---|---|
|
Outside diameter
|
3.937 in
100 mm
|
|
Bore diameter
|
1.063 in
27 mm
|
|
Pitch
|
0.059 in
1.5 mm
|
|
Height, nominal
|
45 in
1143.0 mm
|
| Performance | |
|---|---|
|
Application
|
Gas and diesel engines;Compressors;Electric motors;Gearboxes;Generators;Pumps and fans;Bearing housings;Turbines;Other critical rotating machinery |
| Properties | |
|---|---|
|
Material
|
Stainless steel |
Useful Links:
SKF Vibracon installation guide
SKF Spherical washers data sheet
